Panasonic

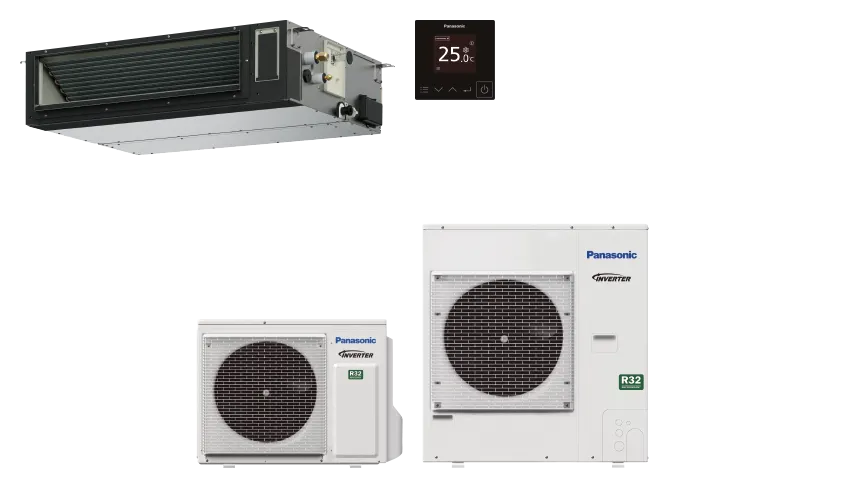

Panasonic Big PACi NX PE4
Vnútorná jednotka · kanálová
Kód produktu: S-200PE4E
KanálováTyp
19,0 kWChladenie
Dane techniczne
acoustic
| Noise pressure indoor max dB(A) | 46 dBA |
|---|---|
| Noise pressure indoor medium dB(A) | 44 dBA |
| Noise pressure indoor min dB(A) | 41 dBA |
electrical
| Phase count | 3 szt |
|---|---|
| Voltage supply max v | 400 V |
| Voltage supply min v | 400 V |
hydraulic
| Pipe diameter gas mm | 22,22 mm |
|---|---|
| Pipe diameter liquid mm | 12,7 mm |
performance
| Airflow indoor max m3h | 4320 m3h |
|---|---|
| Airflow indoor medium m3h | 3780 m3h |
| Airflow indoor min m3h | 3180 m3h |
| Dim depth indoor net mm | 916 mm |
| Dim height indoor net mm | 486 mm |
| Dim width indoor net mm | 1456 mm |
| Static pressure external nominal pa | 75 Pa |
| Weight indoor net kg | 83 kg |
